Brand : ABB

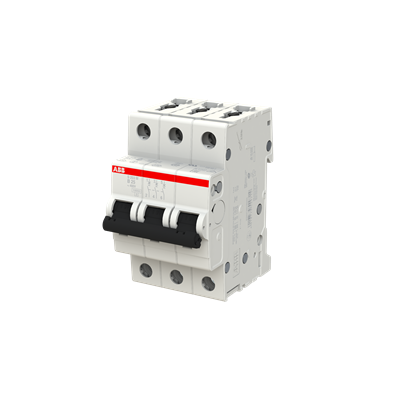

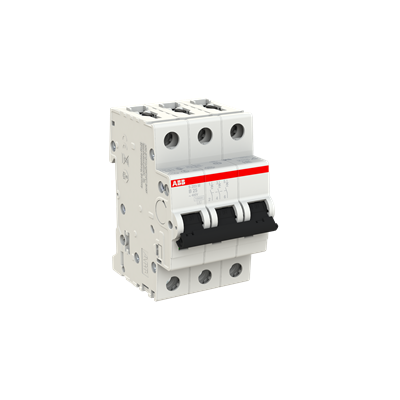

ABB Miniature Circuit Breaker - S200M - 3P - 25 A - B - (AC) 10 kA

SKU : 2CDS273001R0255
0
0 Ratings
Product Highlights
Dielectric Test Voltage : 50 / 60 Hz - 1 min 2 kV Power Supply Connection : Arbitrary Electrical Endurance : 20000 AC cycle, 10000 AC cycle Mechanical Endurance : 20000 cycle Number of Poles : 3P Tightening Torque : 2.8 N·m Actuator Type : Toggle Screw Terminal Type : Failsafe Bi-directional Cylinder-lift Terminal Actuator Material : Insulation Group II, Black, Sealable Recommended Screw Driver : Pozidriv 2 Terminal Type : Screw Terminals
Send enquiry to get a quote
Qty
Unit :
Add to Quote
For B2B orders please connect with us
More Information
About the Product
  System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Download datasheet to get complete information about this product
Download Datasheet
