Brand : ABB
In Stock

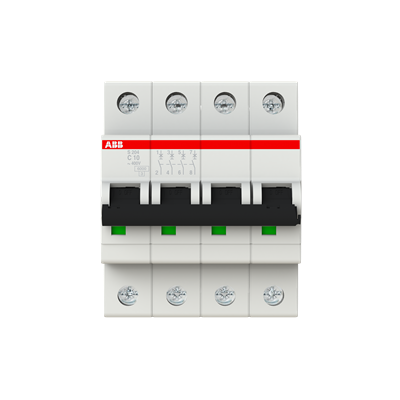

ABB Miniature Circuit Breaker - S200 - 4P - 10 A - C - (AC) 6 kA

SKU : 2CDS254001R0104
AED 183.00
Only 4 Left
Pcs
Add to Cart Buy Now
Cash On Delivery
Secure Payment
Product Highlights

Dielectric Test Voltage : 50 / 60 Hz - 1 min 2 kV

Power Supply Connection : Arbitrary

Contact Position Indication : Red ON / Green OFF

Energy Limiting Class : 3

Electrical Endurance : 20000 AC cycle

Mechanical Endurance : 20000 cycle

Number of Poles : 4P

Tightening Torque : 2.8 N·m

Actuator Type : Toggle

Screw Terminal Type : Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking : I / O

Actuator Material : Insulation Group II, Black, Sealable

Recommended Screw Driver : Pozidriv 2

Terminal Type : Screw Terminals

For B2B orders please connect with us
Enquire Now
More Information
About the Product

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Download datasheet to get complete information about this product
Download Datasheet
