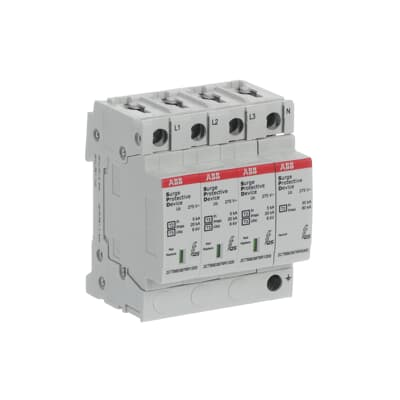

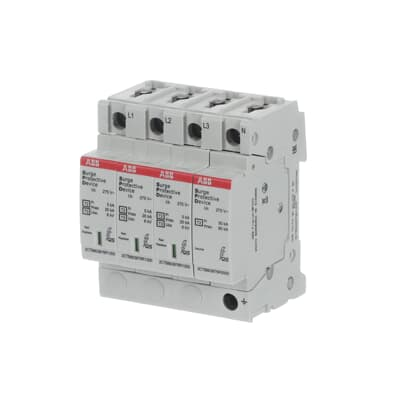

ABB OVR T2-T3 3N 20-275 P QS Surge Protective Device

SKU : 2CTB803973R1200
AED 693.00
Only 2 Left
Pcs
Add to Cart Buy Now
Cash On Delivery
Secure Payment
Product Highlights
  • Type of Low Voltage Distribution System : TT, TN-S
  • Suitable For : To protect the systems against the transient overvoltage (lightning)
  • Nominal AC Voltage of the System (Uo) : 230 / 400 V
  • Maximum Continuous Operating Voltage (Uc) : (L-PE) 275 V
  • Temporary Overvoltage Test Value (UT) : (L-N) 337 V, (N-PE) 1200 V
  • Rated Service Short-Circuit Breaking Capacity (Ics) : 100 kA
  • Discharge Current : Nominal (8 / 20 µs) 5 kA, I (max, 8 / 20 µs) 20 kA
  • Impulse Current : I (imp, 10 / 350 µs) 2 kA
  • Short Circuit Withstand Icc : 100 kA
  • Number of Poles : 4P
  • Number of Conductors : 4
For B2B orders please connect with us
Enquire Now
More Information
About the Product

The OVR T2-T3 3N 20-275 P QS Surge Protective Device is engineered to deliver reliable protection against transient overvoltages in low-voltage electrical installations. Designed for combined Type 2 and Type 3 surge protection, it ensures enhanced safety for sensitive equipment in residential, commercial, and industrial environments. With its 3-phase + neutral configuration and 275V rating, this SPD provides efficient discharge of surge energy, reducing the risk of equipment failure and downtime.

Download datasheet to get complete information about this product
Download Datasheet
