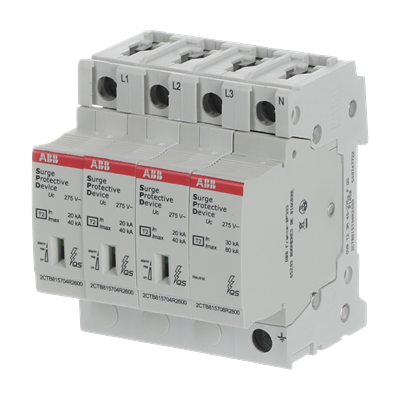

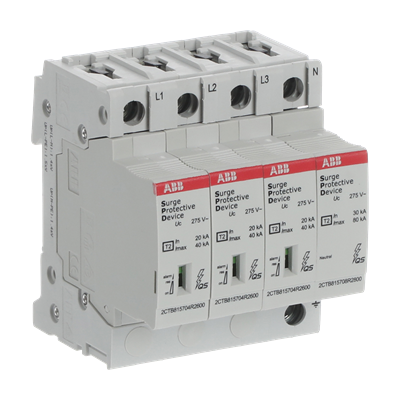

ABB OVR T2 3N 40-275s P QS Surge Protective Device

SKU : 2CTB815704R2000
AED 331.00
Only 3 Left
Pcs
Add to Cart Buy Now
Cash On Delivery
Secure Payment
Product Highlights
  • Type of Low Voltage Distribution System : TT, TN-S
  • Suitable For : To protect the systems against the transient overvoltage (lightning)
  • Nominal AC Voltage of the System (Uo) : 230 / 400 V
  • Maximum Continuous Operating Voltage (Uc): (L-PE) 275 V
  • Temporary Overvoltage Test Value (UT) : (L-N) 337 V, (N-PE) 1200 V
  • Rated Service Short-Circuit Breaking Capacity (Ics) : 100 kA
  • Discharge Current : Nominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 40 kA
  • Impulse Current : I (imp, 10 / 350 µs) 2 kA
  • Short Circuit Withstand Icc : 100 kA
  • Number of Poles : 4P
For B2B orders please connect with us
Enquire Now
More Information
About the Product



Surge protective devices SPD type 2 protect low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected

Download datasheet to get complete information about this product
Download Datasheet
