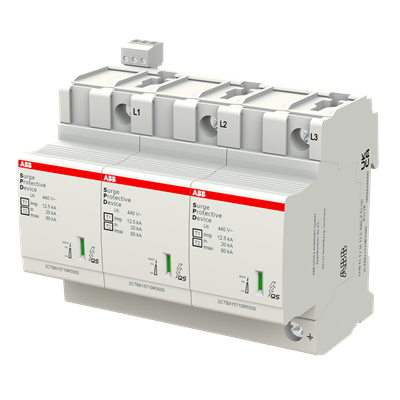

ABB OVR T1-T2 3L 12.5-440s P TS QS Surge Protective Device

SKU : 2CTB815710R3500
AED 331.00
Only 2 Left
Pcs
Add to Cart Buy Now
Cash On Delivery
Secure Payment
Product Highlights
  • Type of Low Voltage Distribution System : TN-C, IT
  • Suitable For : To protect the systems against the transient overvoltage (lightning)
  • Nominal AC Voltage of the System (Uo) : 400 / 690 V
  • Maximum Continuous Operating Voltage (Uc) : (L-PE) 440 V, (L-L) 760 V, (L-N) - V, (N-PE) - V
  • Temporary Overvoltage Test Value (UT) : 581 V
  • Impulse Current: I (imp, 10 / 350 µs) 12.5 kA, I (total, 10 / 350 µs) 37.5 kA
  • Lightning Impulse Current : 12.5 kA
  • Short Circuit Withstand Icc : 100 kA
  • Follow Current Extinction Capacity If (I fi) : (L-N) - kA, (N-PE) - kA
  • Number of Poles : 3P
For B2B orders please connect with us
Enquire Now
More Information
About the Product

The OVR T1-T2 3L 12.5-440s P TS QS Surge Protective Device is engineered to provide comprehensive surge protection for low-voltage 3-phase electrical systems. Combining Type 1 and Type 2 protection, it safeguards sensitive equipment from transient overvoltages caused by lightning, switching operations, and grid fluctuations.

Download datasheet to get complete information about this product
Download Datasheet
