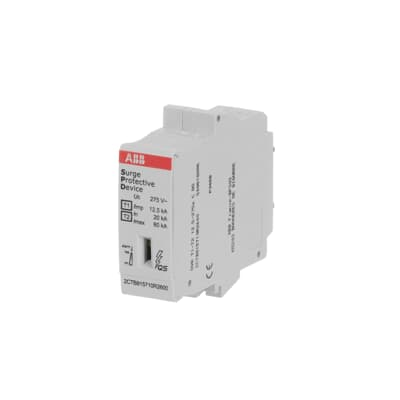

ABB OVR T1-T2 12.5-275s C QS Surge Protective Device

SKU : 2CTB815710R2600
AED 307.00
Only 1 Left
Pcs
Add to Cart Buy Now
Cash On Delivery
Secure Payment
Product Highlights
  • Type of Low Voltage Distribution System: TT, TN-C, TN-S
  • Suitable For : To protect the systems against the transient overvoltage (lightning)
  • Nominal AC Voltage of the System (Uo) : 230 / 400 V
  • Maximum Continuous Operating Voltage (Uc): (L-PE) 275 V, (L-L) 275 V, (L-N) 275 V, (N-PE) - V
  • Temporary Overvoltage Test Value (UT) : 337 V
  • Impulse Current: I (imp, 10 / 350 µs) 12.5 kA, I (total, 10 / 350 µs) - kA
  • Lightning Impulse Current : 12.5 kA
  • Short Circuit Withstand Icc : 100 kA
  • Number of Poles : 1P
For B2B orders please connect with us
Enquire Now
More Information
About the Product

Surge protective devices SPD type 1- type 2 protect low-voltage consumer systems against lightning currents and surge voltages as they are tested as SPD type 1 and type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected

Download datasheet to get complete information about this product
Download Datasheet
